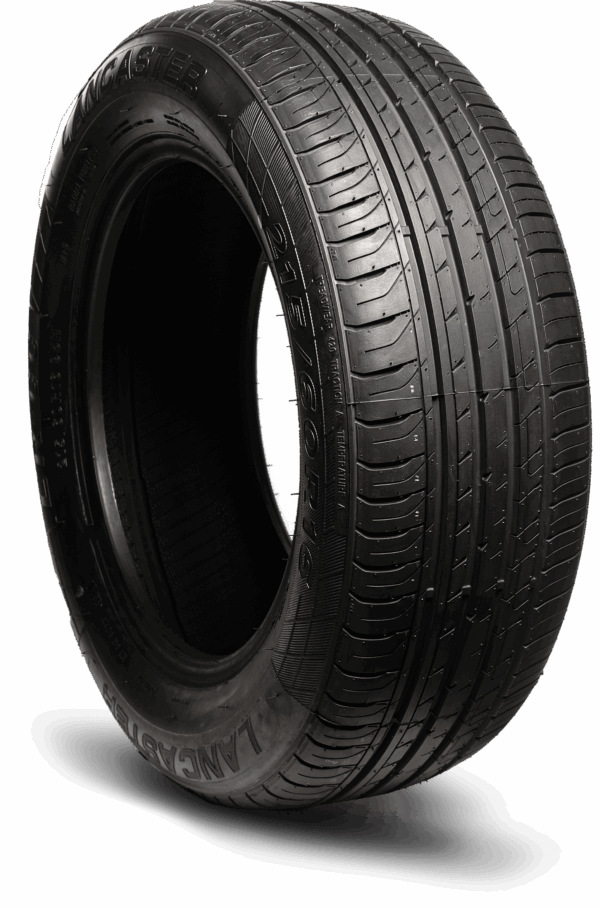

LR-66 45 Degree

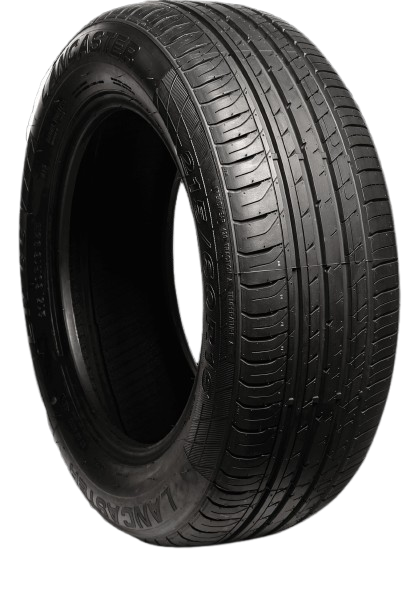

LR-66

The ultimate balance of on-road comfort and off-road durability. Featuring reinforced sidewalls, advanced silica compound, and 3D siping technology for superior wet traction.

Lancaster LR-66 Limited Protection badge showing 45K mile treadwear warranty, 56 sizes from 16 to 20 inches and all-season rating
All Season Grip
Superior traction in wet, dry, and light snow conditions
Long Mileage
Up to 65,000 miles backed by manufacturer warranty
5-Year Warranty
Comprehensive coverage against manufacturing defects

Available Sizes

AOT Item CodeSize PatternRadial Norminal SWAspect RatioRim Diameter LI/SRSpeed RatingTread Depth (32nds)Overall Diameter (in)Section Width (in) Max Load @PSI
LC0170195/55R16LR-66Yes195551687VV9.6024.407.901201@44
LC0140205/45ZR16LR-66Yes205451687WW9.6023.208.101201@49
LC0150205/50ZR16LR-66Yes205501687WW9.6024.108.401201@44
LC0180205/55R16LR-66Yes205551691VV9.6024.908.401356@44
LC0210205/60R16LR-66Yes205601692VV9.6025.708.201389@44
LC0250205/65R16LR-66Yes205651695HH9.6026.508.201521@44
LC0190215/55ZR16LR-66Yes215551697WW9.6025.308.901609@49
LC0220215/60R16LR-66Yes215601695HH9.6026.108.701521@44
LC0160225/50ZR16LR-66Yes225501692WW9.6024.909.201389@44
LC0200225/55ZR16LR-66Yes225551699WW9.6025.709.201709@49
LC0230225/60R16LR-66Yes225601698VV9.6026.609.001653@44
LC0240235/60R16LR-66Yes2356016100HH9.627.19.41764@44
AOT Item CodeSize PatternRadial Norminal SWAspect RatioRim Diameter LI/SRSpeed RatingTread Depth (32nds)Overall Diameter (in)Section Width (in) Max Load @PSI
LC0260205/40ZR17LR-66Yes205401784WW9.6023.508.301102@49
LC0280205/45ZR17LR-66Yes205451788WW9.6024.308.101235@49
LC0330205/50ZR17LR-66Yes205501793WW9.6025.108.401433@49
LC0290215/45ZR17LR-66Yes215451791WW9.6024.608.401356@49
LC0340215/50ZR17LR-66Yes215501795WW9.6025.508.901521@49
LC0370215/55ZR17LR-66Yes215551798WW9.6026.308.901653@49
LC0395215/65R17LR-66Yes215651799HH9.8028.008.701709 @44
LC0300225/45ZR17LR-66Yes225451794WW9.6025.008.901477@49
LC0350225/50ZR17LR-66Yes225501798WW9.6025.909.201653@49
LC0380225/55ZR17LR-66Yes2255517101WW9.6026.809.201819@49
LC0310235/45ZR17LR-66Yes235451797WW9.6025.409.301609@49
LC0360235/50ZR17LR-66Yes2355017100WW9.6026.309.601764@49
LC0390235/55ZR17LR-66Yes2355517103WW9.6027.209.601929@49
LC0270245/40ZR17LR-66Yes245401795WW9.6024.709.801521@49
LC0320245/45ZR17LR-66Yes245451799WW9.6025.709.601709@49
AOT Item CodeSize PatternRadial Norminal SWAspect RatioRim Diameter LI/SRSpeed RatingTread Depth (32nds)Overall Diameter (in)Section Width (in) Max Load @PSI
LC0410215/40ZR18LR-66Yes215401889WW9.6024.808.601279@49
LC0420225/40ZR18LR-66Yes225401892WW9.6025.109.101389@49
LC0450225/45ZR18LR-66Yes225451895WW9.6025.908.901521@49
LC0478225/50ZR18LR-66Yes225501899WW9.6026.909.201709 @49
LC0430235/40ZR18LR-66Yes235401895WW9.6025.409.501521@49
LC0460235/45ZR18LR-66Yes235451898WW9.6026.309.301653@49
LC0480235/50ZR18LR-66Yes2355018101WW9.6027.309.601819@49
LC0484235/55ZR18LR-66Yes2355518104WW9.5728.109.601984@49
LC0440245/40ZR18LR-66Yes245401897WW9.6025.709.801609@49
LC0470245/45ZR18LR-66Yes2454518100WW9.6026.709.601764@49
LC0400255/35ZR18LR-66Yes255351894WW9.8025.0010.201477@49
LC0442255/40ZR18LR-66Yes255401899WW9.8026.0010.201709 @49
AOT Item CodeSize PatternRadial Norminal SWAspect RatioRim Diameter LI/SRSpeed RatingTread Depth (32nds)Overall Diameter (in)Section Width (in) Max Load @PSI
LC0500225/40ZR19LR-66Yes225401993WW9.6026.109.101433@49
LC0513225/45ZR19LR-66Yes225451996YY9.6027.008.901565 @49
LC0516225/55ZR19LR-66Yes2255519103WW9.5728.809.201929@49
LC0490235/35ZR19LR-66Yes235351991WW9.6025.509.501356@49
LC0510235/40ZR19LR-66Yes235401996WW9.6026.409.501565@49
LC0517235/55ZR19LR-66Yes2355519105WW9.5729.209.602039@49
LC0512245/40ZR19LR-66Yes245401998WW9.5726.709.801653@49
LC0514245/45ZR19LR-66Yes2454519102WW9.5727.709.601874@49
LC0518245/55ZR19LR-66Yes2455519107WW9.5729.6010.002149@49
AOT Item CodeSize PatternRadial Norminal SWAspect RatioRim Diameter LI/SRSpeed RatingTread Depth (32nds)Overall Diameter (in)Section Width (in) Max Load @PSI
LC0520225/30ZR20LR-66Yes225302085WW9.6025.409.101135@49
LC0540225/35ZR20LR-66Yes225352093WW9.6026.5010.901433@49
LC0550235/35ZR20LR-66Yes235352092WW9.6026.509.501389@49
LC0560245/35ZR20LR-66Yes245352095WW9.6026.809.801521@49
LC0580245/40ZR20LR-66Yes245402099WW9.6027.709.801709@49
LC0600245/45ZR20LR-66Yes2454520103WW9.6028.709.601929@49
LC0615245/50R20LR-66Yes2455020102VV9.5729.7010.002039@49
LC0570255/35ZR20LR-66Yes255352097WW9.8027.0010.201609@49
LC0602255/45ZR20LR-66Yes2554520105WW9.8329.1010.002039@49
LC0530275/30ZR20LR-66Yes275302097WW9.8026.5010.901609@49
LC0572275/35ZR20LR-66Yes2753520102WW9.8027.6010.901874 @49
LC0590275/40ZR20LR-66Yes2754020106WW9.8028.7010.902094@49
LC0610275/45R20LR-66Yes2754520110VV9.8029.8010.702337@49
LC0620285/50R20LR-66Yes2855020112VV10.1031.3011.702469@44
