LX-01

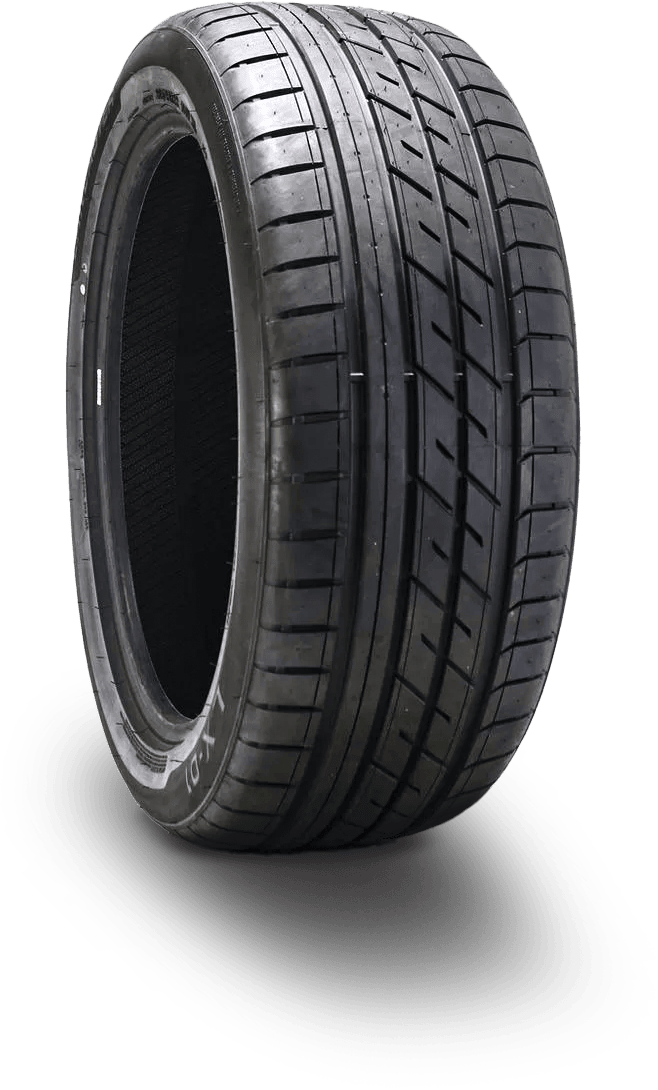

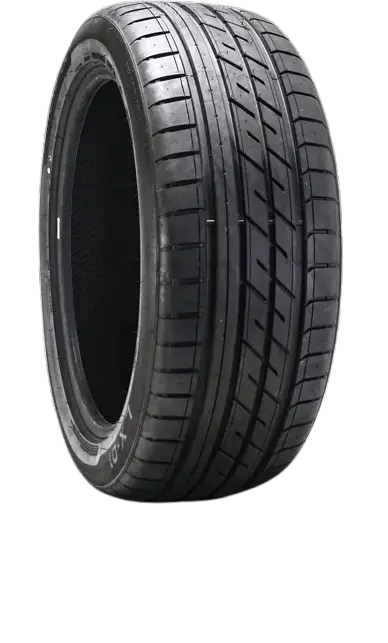

The LX-01 sport truck tire is designed with an asymmetric tread pattern to provide exceptional handling and stability for the larger fitment sizes.

Superior traction in wet, dry, and light snow conditions

Up to 40,000 miles backed by manufacturer warranty

Comprehensive coverage against manufacturing defects

Available Sizes

AOT Item Code	Size	Pattern	Radial	Norminal SW	Aspect Ratio	Rim Diameter	LI/SR	Speed Rating	Tread Depth (32nds)	Overall Diameter (in)	Section Width (in)	Max Load @PSI
LC0630	265/50R20	LX-01	Yes	265	50	20	111V	V	10.1	30.5	10.9	2403@49

AOT Item Code	Size	Pattern	Radial	Norminal SW	Aspect Ratio	Rim Diameter	LI/SR	Speed Rating	Tread Depth (32nds)	Overall Diameter (in)	Section Width (in)	Max Load @PSI
LC0640	235/30ZR22	LX-01	Yes	235	30	22	90W	W	10.10	27.60	9.50	1323@49
LC0650	245/30ZR22	LX-01	Yes	245	30	22	92W	W	10.10	27.80	9.80	1389@49
LC0660	255/30ZR22	LX-01	Yes	255	30	22	95Y	Y	10.10	28.10	10.20	1521@49
LC0670	265/35R22	LX-01	Yes	265	35	22	102V	V	10.10	29.30	10.70	1874@49
LC0680	265/40R22	LX-01	Yes	265	40	22	106V	V	10.10	30.40	10.70	2094@49
LC0692	285/45R22	LX-01	Yes	285	45	22	114V	V	10.08	32.10	11.20	2601@49
LC0690	305/40R22	LX-01	Yes	305	40	22	114V	V	10.10	31.60	12.30	2601@49
LC0700	305/45R22	LX-01	Yes	305	45	22	118V	V	10.10	32.80	11.90	2910@49

AOT Item Code	Size	Pattern	Radial	Norminal SW	Aspect Ratio	Rim Diameter	LI/SR	Speed Rating	Tread Depth (32nds)	Overall Diameter (in)	Section Width (in)	Max Load @PSI
LC0720	255/30ZR24	LX-01	Yes	255	30	24	97W	W	10.10	30.10	10.20	1609@49
LC0710	275/25ZR24	LX-01	Yes	275	25	24	96W	W	10.10	29.40	11.10	1565@49
LC0730	275/30ZR24	LX-01	Yes	275	30	24	101W	W	10.10	30.60	10.90	1819@49
LC0740	305/35R24	LX-01	Yes	305	35	24	112V	V	10.10	32.40	12.30	2469@49

AOT Item Code	Size	Pattern	Radial	Norminal SW	Aspect Ratio	Rim Diameter	LI/SR	Speed Rating	Tread Depth (32nds)	Overall Diameter (in)	Section Width (in)	Max Load @PSI
LC0750	305/30ZR26	LX-01	Yes	305	30	26	109W	W	10.10	33.20	12.30	2271@49
